Computer & Structures, Inc. is pleased to announce the Release of SAP2000 Version 9. The three levels of this release,
Basic (B), Plus (P) and Advanced (A), correspond to the Standard, Plus and Nonlinear levels respectively of previous
releases. The new features that are being released in this version are listed below along with the associated level in which
the enhancement is implemented.

Computers & Structures, Inc. is also pleased to announce the release of five specialty add-on modules to SAP2000, namely, the Object-Based Bridge Design Module, the Staged Construction Module, the Offshore/Wave Module, the Heat Transfer Module and the SASSI (Soil Structure Interaction) Interface Module. All add-on modules require SAP2000 Advanced, except the Object-Based Bridge Design Module which requires a minimum of SAP2000 Plus. These modules need additional licensing. Please contact [email protected] for more information...

สนใจโทร. :  ราคาเริ่มต้นที่ 140,000 บาท

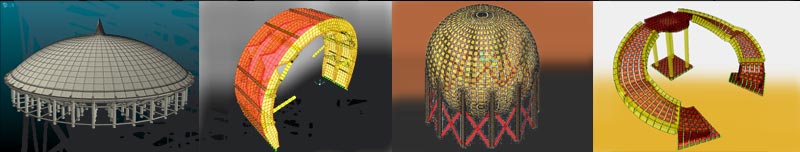

· New Object based model templates including auto meshing
· Enhanced drawing tools with several new snaps
· Enhanced selection options
· Enhanced extrusion routines
· Curved frame, cable and tendon elements
· Shell and solid internal meshing
· Enhanced shell mesh editing
· Auto line constraints for mismatched shell meshes
· Auto transfer of area loads to frames
· Open-structure wind loads
· IBC 2003 seismic and wind loads
· Chinese Building Code seismic and wind loads
· Lane definition independent of frames
· Area-object thickness and joint offset overwrites
· New imports added from IGES, NASTRAN, STRUDL, STAAD


· Enhanced OpenGL viewer
· Enhanced animation capability
· Enhanced tabular display options
· Enhanced lane displays showing lane loading points
· Influence surface displays
· Display of automated loads
· Graphical section cut definitions for forces and stresses
· Analysis case tree display

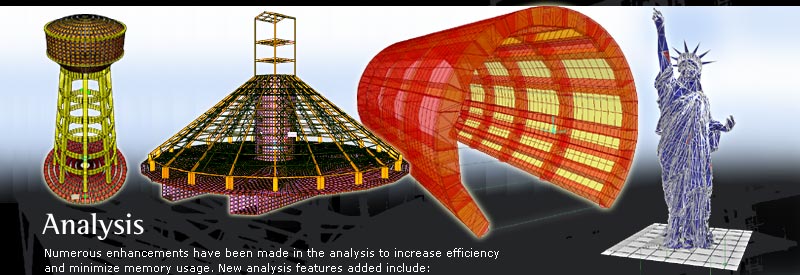

Frequency Domain Analysis (A, P)
· Steady state analysis
· Power Spectral Density (PSD) analysis
· Frequency dependent properties for links/supports

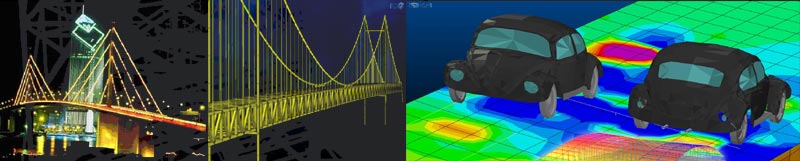

Moving Loads (A, P) (Requires Bridge Module)
· Vehicles can load frames, shells or solids
· Three dimensional influence surfaces
· Vehicle width effects included
· Live-load analysis includes transverse positioning
  of the vehicles
· Alternate Moving-load analysis using Multi-step
  loading (static or dynamic)
· Support for AASHTO-LRFD and BS 5400-2
· Moving-load response available for section cuts

Post Tensioning (A, P, B)
· Tendons in frame, shell, solid elements
· Creep, shrinkage, relaxation, anchorage slip,
  elastic shortening losses
· Tendons can be placed with arbitrary geometry


Enhanced Frame hinge model (A)
· P-M-M interaction with load-dependent
  moment-curvature relationships
· New Section Designer considers Mander model
  for confined concrete
· Caltrans shapes and hinge behavior
· Fiber model options
· FEMA 356 recommendations

Additional Link behavior (A, P, B)
· Fully-coupled 6x6 linear spring and dashpot
· Link degrees of freedom can be rigid to act as
  constraints or restraints

Additional Nonlinear Link behavior (A)
· Pivot-hysteresis and Takeda models for plasticity
· Double-acting friction-pendulum isolators

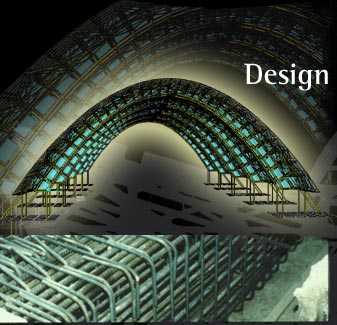

Steel Frame Design (A, P, B)
· Updated to AISC-ASD 1989 (Supplement 2001)
  (Seismic Provisions 2002)
· Updated to AISC-LRFD 2001 (Seismic Provisions 2002)
· IBC 2003
· Chinese Building Code (SAP2000 Chinese version only)

Concrete Frame Design (A, P, B)
· Updated to ACI 318-02
· IBC 2003
· Chinese Building Code (SAP2000 Chinese version only)

Aluminum Frame Design (A, P, B)
· Aluminum Association - ASD 2000
· Aluminum Association - LRFD 2000

Cold-formed Steel Frame Design (A, P, B)
· AISI-ASD 1996 (Supplement 1999)
· AISI-LRFD 1996 (Supplement 1999)

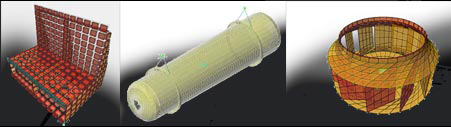

· Updated Help
· Updated Analysis Reference Manual
· Updated Design Manuals
· Updated and expanded Verification Manual





( Can Be Added to Plus Version)
The Bridge Design Module adds capability to easily model complicated
bridge geometry using Bridge Designer’s terminology. Specifically included are:

· Layout-line definition for bridge elements and lanes using
  bearings and stations
· Layout-line has horizontal and vertical curves and transitions
· Parametric cross-section definitions
· Cross-section parameters can vary along length of bridge
· Bridge definition includes spans, abutments, hinges,
  bents and superelevation
· Abutments, bents and hinges can be skewed
· Post-tensioning layout
· Automatically creates spine (frame), shell or solid-element models
· Structural model can remain linked to Bridge objects for quick editing
· Display of integrated forces and stresses along bridge

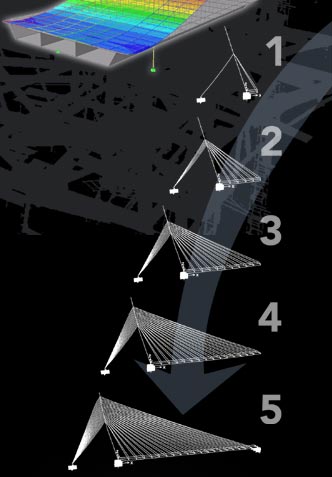

The Staged Construction Module adds capability to consider staged
construction sequencing for any model. Time dependent effects such
as creep and shrinkage can be included in staged construction
analyses. Specifically included are:

· Staged construction sequencing allowing Adding or Removing members
· Staged construction sequencing allowing Adding or Removing loads
· Staged construction sequencing allowing Adding or Removing supports
· Time dependent concrete age effects (FIP-CEB)
· Time dependent creep and shrinkage (FIP-CEB)
· Time dependent prestressing steel relaxation (FIP-CEB)
· Explicitly model time-dependent effects using tendon elements







The Offshore Module adds capability to easily apply wave loading to offshore structures and includes API design. Specifically included are:

· Wave load generator
· API steel frame design
· API punching shear checks
· API Simplified fatigue analysis


(*) Currently under testing, not available in initial release

The Heat Transfer Module adds capability to perform heat transfer analysis. Specifically included are:

· Steady-state and Transient Analysis
· Conduction, Convection, Radiation, Heat of Hydration
· Point, Frame, Shell, Solid elements
· Interaction with stress analysis


(*) Currently under testing, not available in initial release

The SASSI 2000 Module adds capability to export the SAP2000
structural model to SASSI (System for Analysis of Soil-Structure
Interaction) where soil-structure interaction analysis is performed and then import SASSI results.
Specifically included are:

· Structural model export to SASSI
· GUI for additional data required by SASSI
· Display structural responses and time history results
   from SASSI
· Use SASSI output motions to perform structural analysis
